Industrial Zig-Zag Modular Roller Brush - Replaceable Segment Cylinder Brush

Overview

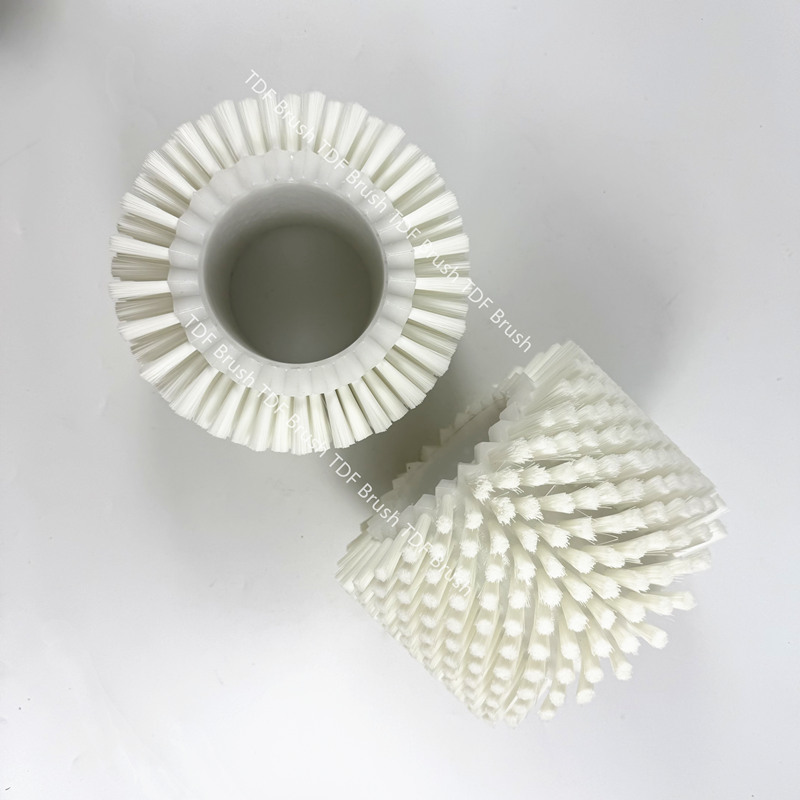

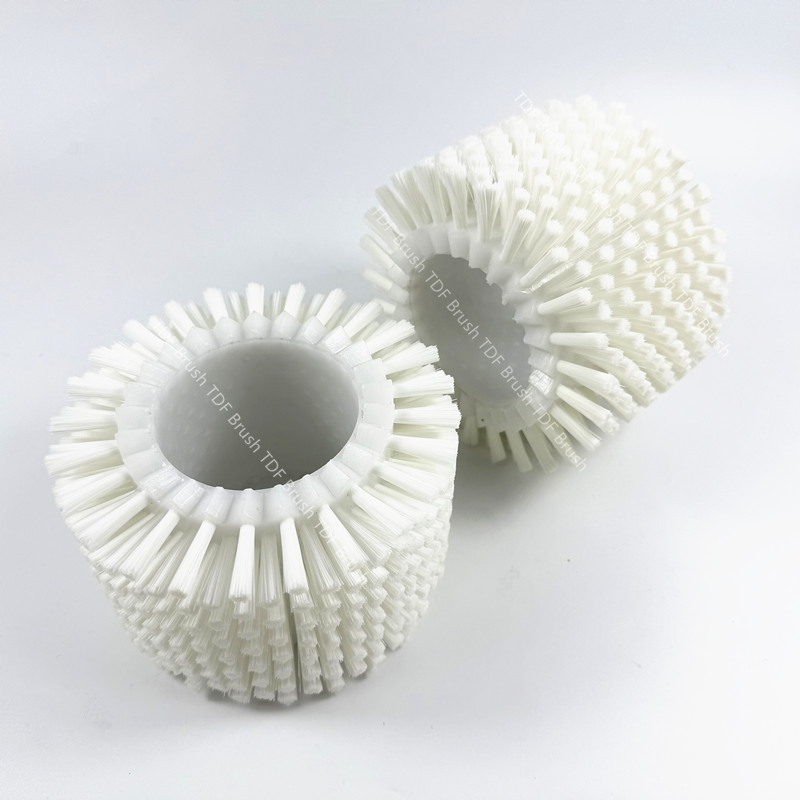

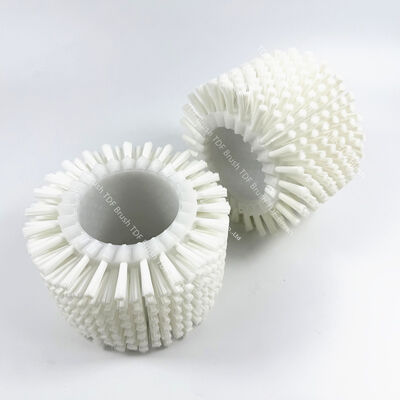

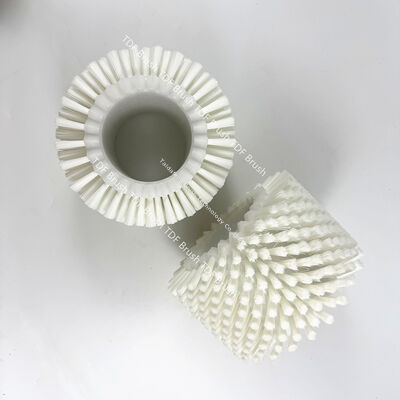

The Industrial Zig-Zag Brush is a revolutionary modular cylinder brush (also called rotary brush) designed to solve the pain points of traditional one-piece roller brushes. Each segment features interlocking trapezoidal teeth with precision serration, enabling seamless assembly into a continuous, gap-free brush face of any required length. A common challenge with roller brushes is that bristles often wear down only partially—yet traditional designs force full replacement, wasting time and resources on downtime and unnecessary costs. Our Zig-Zag system eliminates this inefficiency, while offering exceptional flexibility: multiple segment dimensions, adaptable spindle hole diameters, and fully customizable brush body & bristle configurations to suit diverse industrial needs. Crafted with customizable high-performance materials, this modular system delivers dimensional stability, thermal and chemical resistance, and precise operation—even in harsh working environments. Whether you need easy installation for long brush bodies, cost-effective partial replacement, or specialized bristle configurations, the Zig-Zag brush offers efficient, versatile solutions tailored to your manufacturing line.

Core Advantages

Effortless Installation & Rapid Replacement

Quick and easy fitting: Both first-time installation and replacement after wear are simple, no professional skills required.
Tool-free segment replacement: Individual damaged segments can be swapped out rapidly without special equipment, minimizing machinery downtime.

Superior Performance & Uniform Operation

Streak-free bristle surface: The unique ZZ shape guarantees a continuous, gapless bristle distribution, eliminating streaks on processed surfaces.
Precise centring & tight fit: Precision serration ensures each segment is perfectly aligned and tightly interlocked, maintaining excellent concentricity and stable rotation.

Exceptional Compatibility & Full Customisation

Multi-spec compatibility: Different bristle diameters and overall brush diameters can be combined on the same shaft, adapting to complex application needs.
Multiple segment sizes: Choose from a variety of segment dimensions with multiple serration options, covering a wide range of industrial scenarios.
Adaptable spindle holes: The system can be adjusted to fit various spindle hole diameters, ensuring compatibility with most standard industrial shafts.
Customizable brush body: Select from PP, nylon, or PVC materials to match your working environment (e.g., chemical resistance, temperature tolerance).
Tailored bristle solutions: Bristle material, diameter, density, stiffness, and pattern can all be customized to meet specific application requirements.

Durable & Reliable Build

Customizable brush body: PP/nylon/PVC brush bodies provide superior dimensional stability, thermal resistance, and chemical resistance, ensuring long-lasting use in demanding industrial settings.
High-quality customizable bristles: Choose from a range of premium bristle materials (including wear-resistant, flexible, or rigid options) for consistent performance in dry/wet environments.

Industrial Applications

Our Zig-Zag modular roller brushes are versatile enough to excel in numerous industrial scenarios, with customized configurations for specific needs:

Cleaning & Deburring: Industrial conveyor cleaning, surface dusting, metal part deburring (steel wire/brass bristles), and washing lines (chemical-resistant PP/PVC bodies).

Food Processing: Vegetable peeling, fruit polishing (food-grade nylon/sisal bristles), and food packaging line guiding (compliant with food safety standards).
Material Handling: Delicate material conveying (textiles, electronics) with soft nylon/animal hair bristles; heavy-duty handling with rigid steel wire bristles.
Coating & Finishing: Uniform dispensing of paints/adhesives (flexible nylon bristles); metal surface structuring/polishing (abrasive wire/brass bristles).
Specialized Tasks: Perforation control, contamination removal in pharmaceutical/automotive production, and precision dosing applications (custom bristle densities).

Customization Services

We specialize in fully customized Zig-Zag modular roller brush solutions tailored to your unique industrial needs. All key parameters are customizable for optimal performance:

Mechanical Specs: Segment size/quantity, spindle hole diameter, overall brush diameter, interlocking serration type.
Brush Body: Material (PP: lightweight & cost-effective; nylon: durable & flexible; PVC: chemical-resistant); custom color.
Bristles: Material (nylon, PP, steel wire, stainless steel wire, brass, abrasive wire, sisal, animal hair, etc.); fully customizable diameter, length, stiffness, density; pattern (chevron, spiral, segmented, profiled, custom).
Special Needs: OEM/ODM support, bulk customization, adaptation to extreme temperatures, corrosive environments, or food-grade standards.

For customized solutions, detailed product specifications, or a tailored quote, feel free to reach out via the following channels—we’re ready to support your needs:

Email: tdf@tdfbrush.com | Phone(Whatsapp): +8613856090482
